Line Chart

The LineChart component renders a line chart with optional smoothing, markers, value labels, and category labels. It is useful for visualizing time series or continuous numerical data.

class pptx_shapes.charts.line.LineChart(config: LineChartConfig)

render(data: List[dict], x: float, y: float) → List[Shape]

A line chart consists of the following elements:

• A polyline connecting all data points (optionally smoothed)

• Optional background fill under the curve

• Circular markers at each point

• Value labels positioned above each point

• Category labels (e.g., months) below each point

Configuration

Configuration is done via the :ref:LineChartConfig <line-chart-config>, which includes:

• LineConfig – controls color, background and thickness of the line

• MarkerConfig – controls appearance of point markers

• LabelConfig – controls font styles for value and category labels

LineConfig

class pptx_shapes.charts.line.LineConfig(color: str = '#fe7a81', background: str = '#fe7a81', background_opacity: float = 0.1, thickness: float = 1.5)

Attributes:

• color (str) – color of the line, default: "#fe7a81".

• background (str) – fill color under the line, default: "#fe7a81".

• background_opacity (float) – opacity of the fill (0.0–1.0), default: 0.1.

• thickness (float) – thickness of the line, default: 1.5.

Example:

line = LineConfig(
    color="#fe7a81",
    background="#ffddd7",
    background_opacity=1,
    thickness=1.5
)

MarkerConfig

class pptx_shapes.charts.line.MarkerConfig(color: str = '#fe7a81', background: str = '#ffffff', radius: float = 0.1, width: float = 1.5, height: float = 8, thickness: float = 1.5)

Attributes:

• color (str) – marker border color, default: "#fe7a81".

• background (str) – marker fill color, default: "#ffffff".

• radius (float) – marker radius, default: 0.1.

• width (float) – marker width, default: 1.5.

• height (float) – marker height, default: 8.

• thickness (float) – outline thickness, default: 1.5.

Example:

marker = MarkerConfig(
    radius=0.16,
    width=2.6,
    height=14,
    thickness=2
)

LabelConfig

class pptx_shapes.charts.line.LabelConfig(size: float = 8, color: str = '#222222', family: str = 'Calibri', height: float = 1)

Attributes:

• size (float) – font size of the label, default: 8.

• color (str) – text color, default: "#222222".

• family (str) – font family used for the text, default: "Calibri".

• height (float) – vertical space reserved for the label, default: 1.

Example:

label = LabelConfig(
    color="#fe7a81",
    size=12
)

LineChartConfig

class pptx_shapes.charts.line.LineChartConfig(line: pptx_shapes.charts.line.config.LineConfig = <factory>, marker: pptx_shapes.charts.line.config.MarkerConfig = <factory>, value: pptx_shapes.charts.line.config.LabelConfig = <factory>, label: pptx_shapes.charts.line.config.LabelConfig = <factory>, smooth_count: int = 20)

Attributes:

• line (LineConfig) – appearance of the line and background.

• marker (MarkerConfig) – appearance of point markers.

• value (LabelConfig) – value text config.

• label (LabelConfig) – label text config.

• smooth_count (int) – number of interpolated points for smoothing, default: 20.

Example usage

from pptx_shapes import Presentation
from pptx_shapes.charts.line import LabelConfig, LineChart, LineChartConfig, LineConfig, MarkerConfig
from pptx_shapes.shapes import Group


def main() -> None:
    x0, y0 = 1.25, 2

    config = LineChartConfig(
        line=LineConfig(color="#fe7a81", background="#ffddd7", background_opacity=1, thickness=1.5),
        marker=MarkerConfig(radius=0.16, width=2.6, height=14, thickness=2),
        value=LabelConfig(color="#fe7a81", size=12),
        label=LabelConfig(color="#888888", size=13),
        smooth_count=20
    )

    data = [
        {"value": 6.2, "label": "январь\n2024"},
        {"value": 4.5, "label": "февраль\n2024"},
        {"value": 7.1, "label": "март\n2024"},
        {"value": 7, "label": "апрель\n2024"},
        {"value": 4.1, "label": "май\n2024"},
        {"value": 5.3, "label": "июнь\n2024"},
        {"value": 6.1, "label": "июль\n2024"},
        {"value": 5.9, "label": "август\n2024"},
        {"value": 9.3, "label": "сентябрь\n2024"},
        {"value": 8.5, "label": "октябрь\n2024"},
        {"value": 10.1, "label": "ноябрь\n2024"},
        {"value": 8.2, "label": "декабрь\n2024"}
    ]

    with Presentation(presentation_path="../empty.pptx") as presentation:
        chart = LineChart(config=config)
        presentation.add(shape=Group(chart.render(data=data, x=x0, y=y0)))
        presentation.save("line_chart.pptx")


if __name__ == "__main__":
    main()

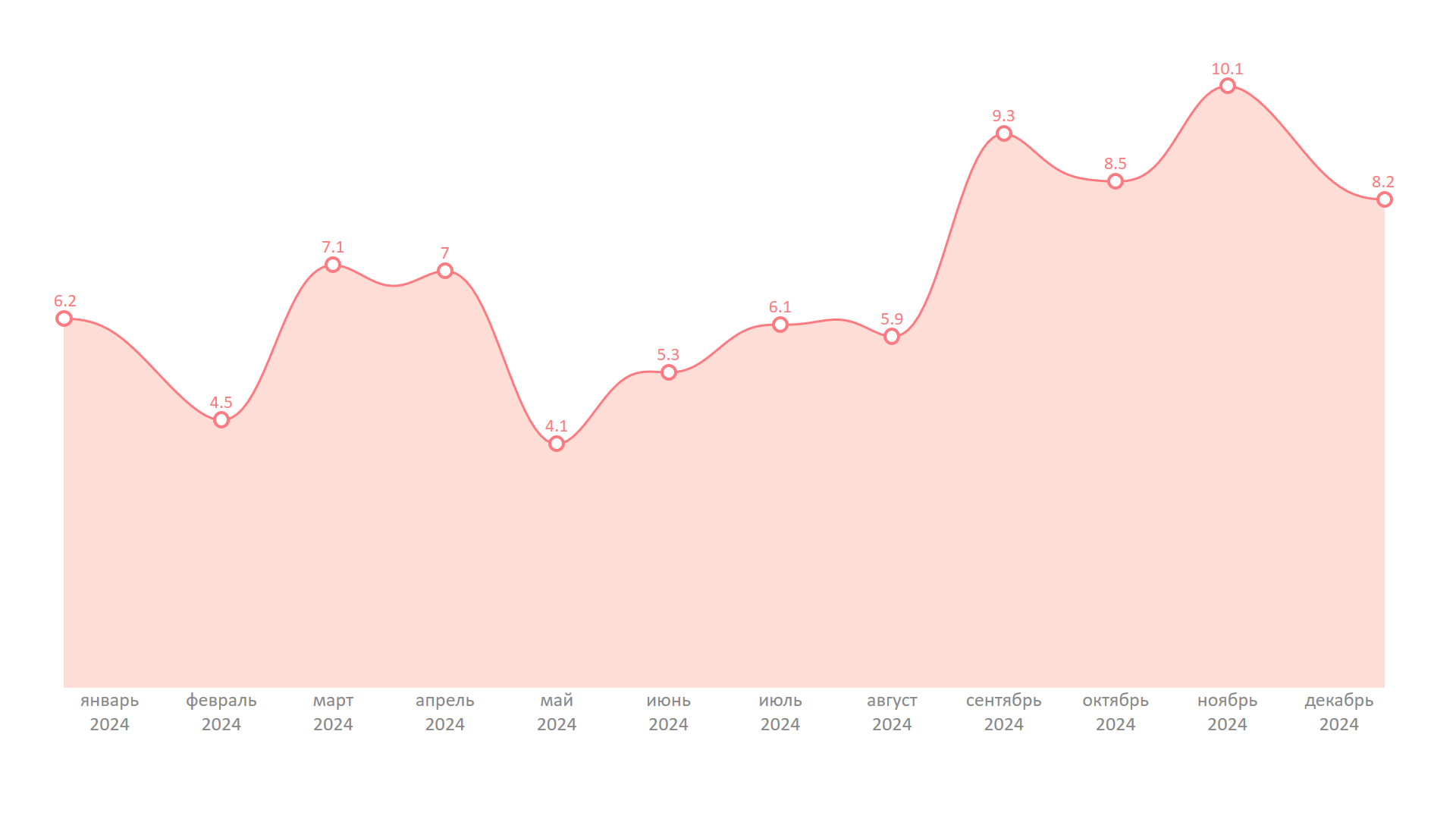

It creates a line chart where:

• Line is styled with a colored stroke and filled background

• Markers are placed at each data point

• Value labels appear above each marker

• Multi-line category labels appear below each marker

Result

This script produces a file line_chart.pptx with a line chart rendered on a blank slide. Each point shows a value and a category label (typically a month and year). The line is optionally smoothed and styled via config parameters.

You can adjust smoothing, line appearance, markers and text styling via configuration.
