Ellipse

An ellipse (oval or circle), positioned by its bounding box.

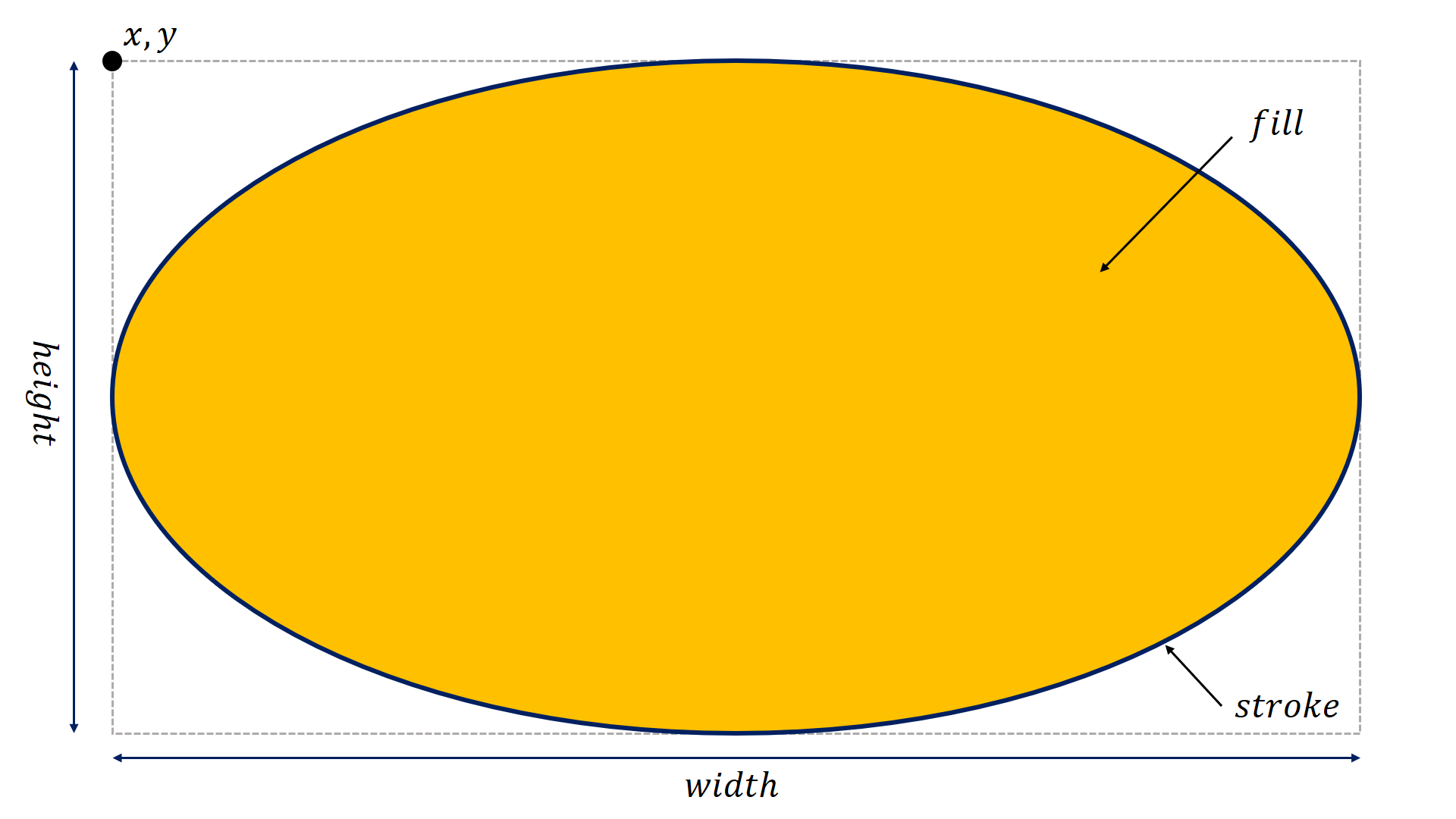

Ellipse example
class pptx_shapes.shapes.Ellipse(x: float, y: float, width: float, height: float, angle: float = 0, fill: pptx_shapes.style.fill_style.FillStyle | None = None, stroke: pptx_shapes.style.stroke_style.StrokeStyle | None = None)

Parameters

  • x (float) – left position (in centimeters).

  • y (float) – top position (in centimeters).

  • width (float) – width (in centimeters).

  • height (float) – height (in centimeters).

  • angle (float, optional) – rotation in degrees, default is 0.

  • fill (FillStyle, optional) – fill style.

  • stroke (StrokeStyle, optional) – stroke style.

Example

from pptx_shapes.shapes import Ellipse
from pptx_shapes.style import FillStyle

ellipse = Ellipse(
    x=1, y=1,
    width=3, height=2,
    fill=FillStyle(color="blue")
)
