Scatter Plot

The ScatterPlot chart allows you to render a 2D scatter plot using customizable points and axis configuration. This chart is ideal for visualizing distributions, clusters, or geometric patterns in data.

class pptx_shapes.charts.scatter.ScatterPlot

render(points: List[ScatterPoint], config: ScatterPlotConfig) → List[Shape]

A scatter plot consists of the following elements:

A list of ScatterPoint plotted by their (x, y) coordinates
Optional X and Y axes with ticks and labels
Configurable spacing, dimensions, and visual styles

Configuration

Configuration is managed through ScatterPlotConfig, which includes:

Axes — controls axes appearance, labels, and ticks
Limits — defines data bounds and mapping to canvas

Axes

class pptx_shapes.charts.scatter.config.Axes(color: str = '#555', show_x: bool = True, show_y: bool = True, thickness: float = 1, tick_length: float = 0.3, font: pptx_shapes.charts.scatter.config.AxesFont = <factory>, text_size: float = 1)

Attributes:

color (str) – axes color, default: "#555".
show_x (bool) – whether to render X axis, default: True.
show_y (bool) – whether to render Y axis, default: True.
thickness (float) – stroke thickness of axes, default: 1.
tick_length (float) – length of tick marks, default: 0.3.
font (AxesFont) – font style for axis labels.
text_size (float) – label text size in cm, default: 1.

class pptx_shapes.charts.scatter.config.AxesFont(size: float = 8, color: str = '#222', family: str = 'Calibri')

AxesFont attributes:

size (float) – font size in pt, default: 8.
color (str) – font color, default: "#222".
family (str) – font family, default: "Calibri".

Limits

class pptx_shapes.charts.scatter.config.Limits(x_min: float, y_min: float, x_max: float, y_max: float)

Limits define the bounding box of the data used for coordinate mapping.

Attributes:

x_min, x_max (float) – min/max for X axis.
y_min, y_max (float) – min/max for Y axis.

ScatterPoint

class pptx_shapes.charts.scatter.point.ScatterPoint(x: float, y: float, radius: float = 0.5, fill: Optional[pptx_shapes.style.fill_style.FillStyle] = <factory>, stroke: Optional[pptx_shapes.style.stroke_style.StrokeStyle] = <factory>)

Attributes:

x, y (float) – data point coordinates.
radius (float) – radius of the point in cm, default: 0.5.
fill (FillStyle) – point fill style.
stroke (StrokeStyle) – point border style.

ScatterPlotConfig

class pptx_shapes.charts.scatter.config.ScatterPlotConfig(x: float, y: float, width: float = 8, height: float = 8, padding: float = 0.2, axes: pptx_shapes.charts.scatter.config.Axes = <factory>, limits: Optional[pptx_shapes.charts.scatter.config.Limits] = None)

Attributes:

x, y (float) – top-left position of the plot on slide.
width, height (float) – chart dimensions, default: 8×8 cm.
padding (float) – inner padding (space from axes), default: 0.2 cm.
axes (Axes) – axes style and visibility.
limits (Optional[Limits]) – optional manual bounds, otherwise auto-computed.

Example usage

import math
import random

from pptx_shapes import Presentation
from pptx_shapes.charts.scatter import Axes, ScatterPlot, ScatterPlotConfig, ScatterPoint
from pptx_shapes.charts.scatter.config import AxesFont
from pptx_shapes.shapes import Group
from pptx_shapes.style import FillStyle, StrokeStyle

def spiral(h: float = 1.25, delta: float = 0.1) -> ScatterPoint:
    label = random.randint(0, 1)
    angle = random.random()
    r = angle - delta + random.random() * delta * 2
    t = h * angle * 2 * math.pi

    if label == 1:
        t += math.pi

    return ScatterPoint(
        x=r * math.sin(t),
        y=r * math.cos(t),
        radius=0.11,
        fill=FillStyle(color=["#7699d4", "#dd7373"][label]),
        stroke=StrokeStyle(color="#fff", thickness=0.5)
    )

x0, y0 = 9.5, 2
points_count = 1000

points = [spiral() for _ in range(points_count)]

config = ScatterPlotConfig(
    x=x0, y=y0,
    width=15, height=15,
    axes=Axes(show_x=True, show_y=True, color="#222", font=AxesFont(size=10, color="#222")),
    padding=0.2
)

with Presentation(presentation_path="empty.pptx") as presentation:
    plot = ScatterPlot()
    presentation.add(shape=Group(plot.render(points=points, config=config)))
    presentation.save("scatter_plot.pptx")

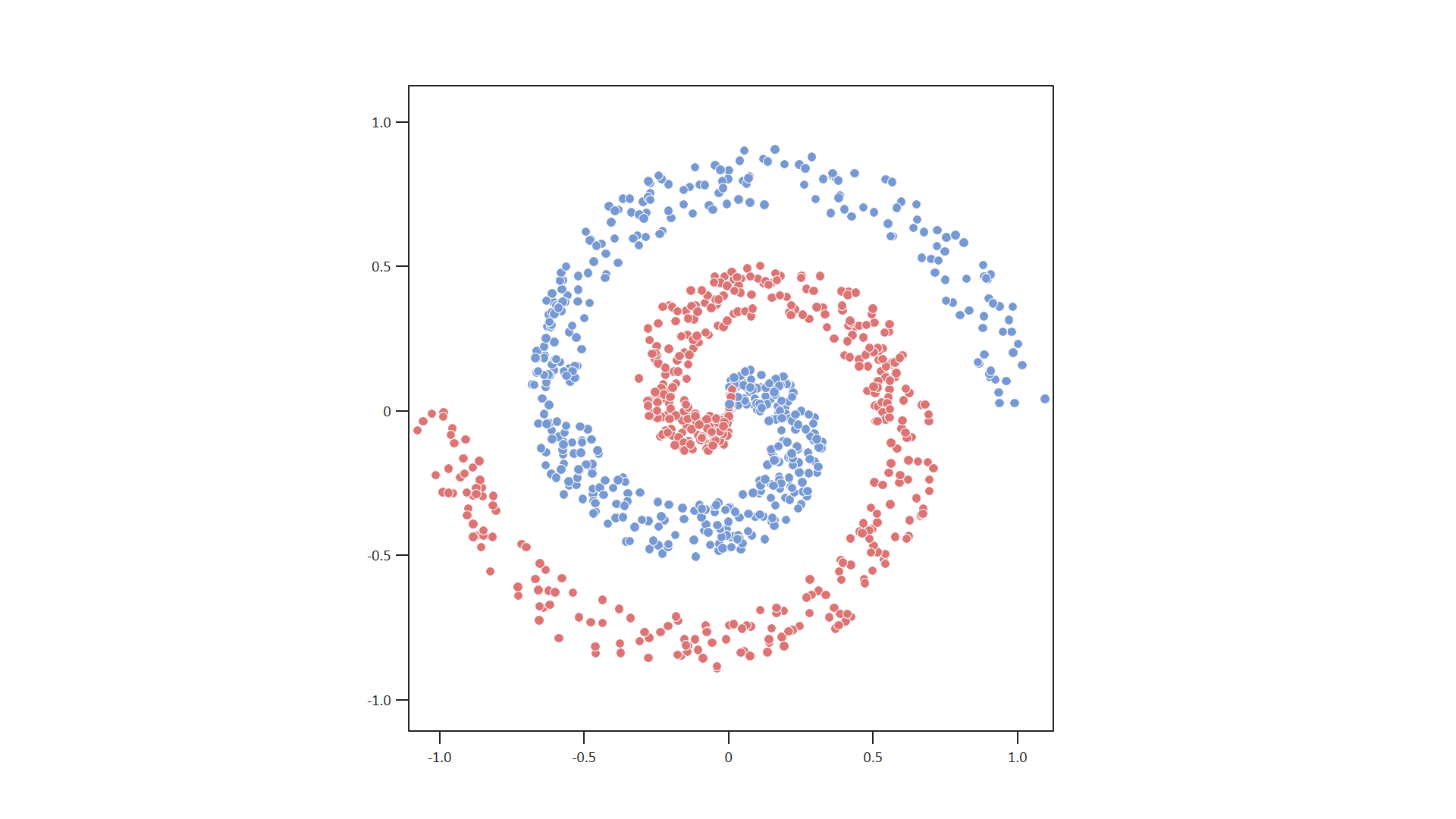

Result

This script generates a file scatter_plot.pptx with a scatter plot on a blank slide. Points are rendered as colored circles with configurable radius and style.

Axes, scale, and spacing are customizable via the config.

Note

If no limits are provided, bounds are automatically determined from the data.
