Line

A straight line connecting two points.

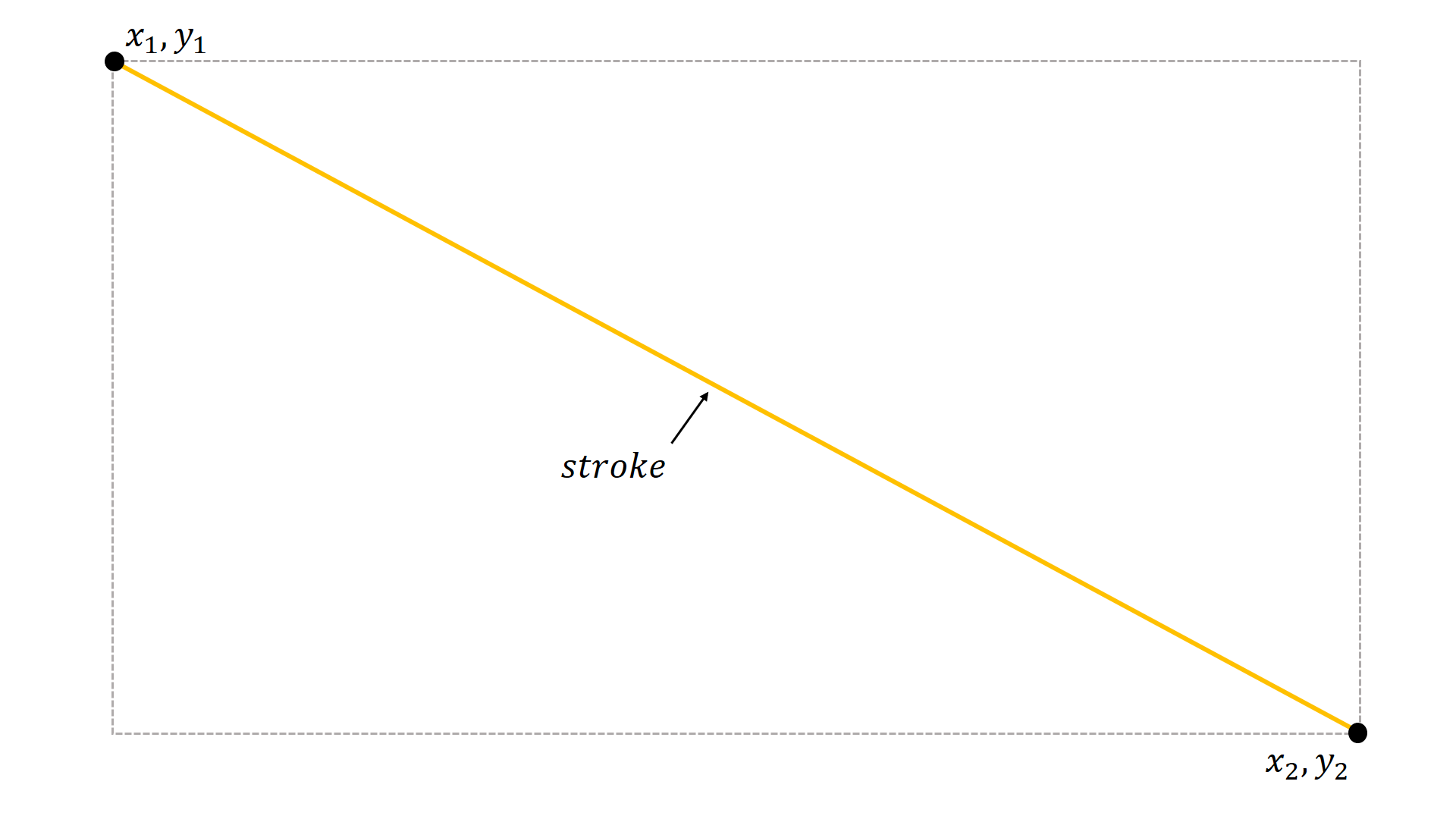

Line example
class pptx_shapes.shapes.Line(x1: float, y1: float, x2: float, y2: float, stroke: pptx_shapes.style.stroke_style.StrokeStyle = <factory>)

Parameters

  • x1 (float) – left position of the start point (in centimeters).

  • y1 (float) – top position of the start point (in centimeters).

  • x2 (float) – left position of the end point (in centimeters).

  • y2 (float) – top position of the end point (in centimeters).

  • stroke (StrokeStyle, optional) – stroke style.

Example

from pptx_shapes.shapes import Line
from pptx_shapes.style import StrokeStyle

line = Line(
    x1=13, y1=1,
    x2=1, y2=6,
    stroke=StrokeStyle(thickness=2, color="#89dd73")
)
