Arrow

A straight arrow connecting two points.

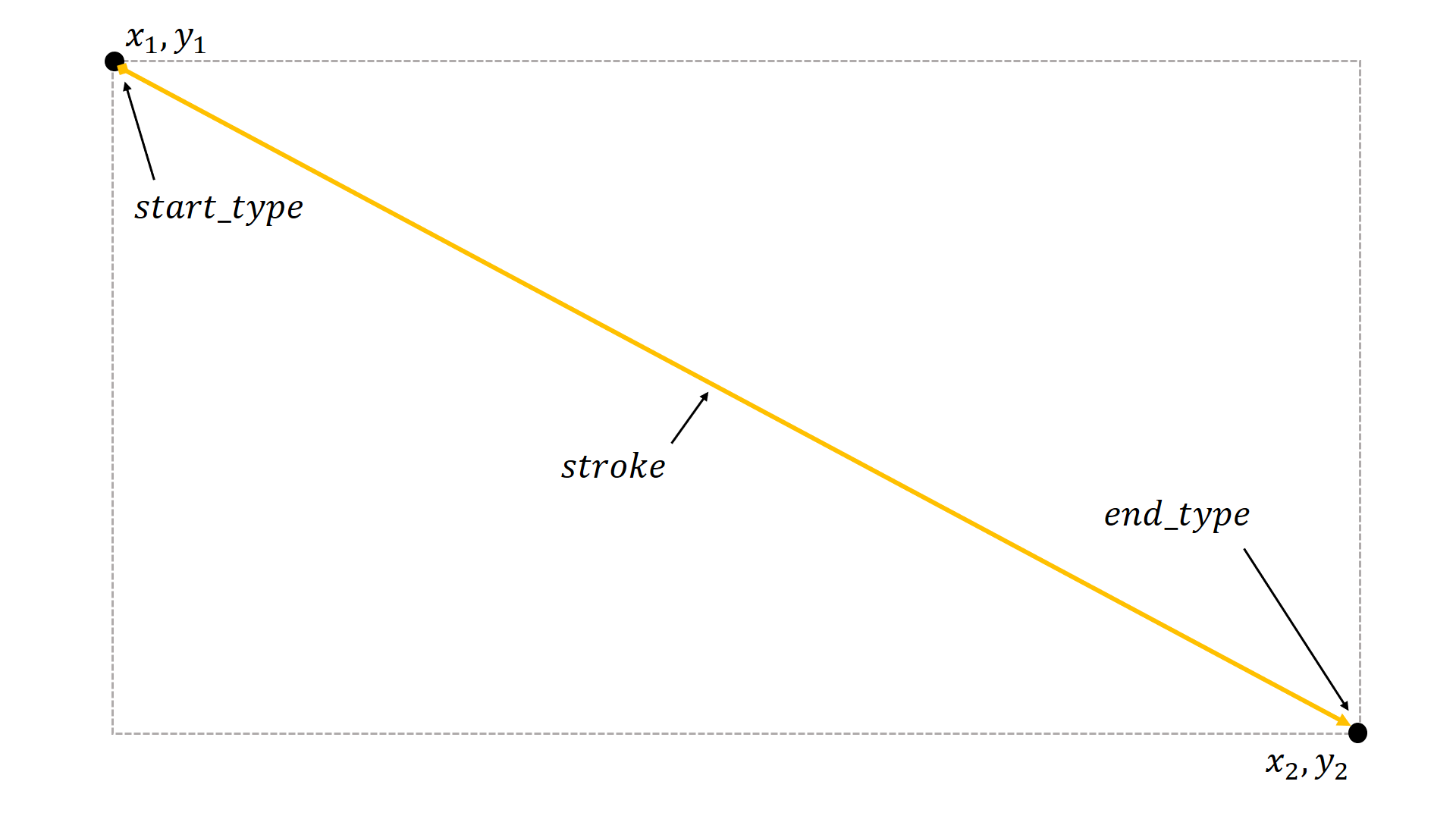

Arrow example
class pptx_shapes.shapes.Arrow(x1: float, y1: float, x2: float, y2: float, start_type: pptx_shapes.enums.arrow_type.ArrowType = <ArrowType.NONE: 'none'>, end_type: pptx_shapes.enums.arrow_type.ArrowType = <ArrowType.TRIANGLE: 'triangle'>, stroke: pptx_shapes.style.stroke_style.StrokeStyle = <factory>)

Parameters

  • x1 (float) – left position of the start point (in centimeters).

  • y1 (float) – top position of the start point (in centimeters).

  • x2 (float) – left position of the end point (in centimeters).

  • y2 (float) – top position of the end point (in centimeters).

  • start_type (ArrowType, optional) – arrowhead type at the start point.

  • end_type (ArrowType, optional) – arrowhead type at the end point.

  • stroke (StrokeStyle, optional) – stroke style.

Example

from pptx_shapes.shapes import Arrow
from pptx_shapes.style import StrokeStyle

arrow = Arrow(
    x1=10, y1=9,
    x2=14, y2=11,
    start_type=ArrowType.OVAL,
    end_type=ArrowType.ARROW,
    stroke=StrokeStyle(thickness=2)
)
