Donut chart

The DonutChart class allows adding a donut chart (also known as a ring chart) to a presentation slide. It automatically creates a group of shapes including slices and total value label, and calculates angles and layout based on the input data.

class pptx_shapes.charts.donut.DonutChart(config: DonutChartConfig)

render(data: List[dict], x: float, y: float) → List[Shape]

Configuration

The appearance and layout of a donut chart can be customized using the following configuration dataclasses:

GapConfig

class pptx_shapes.charts.donut.config.GapConfig(thickness: float = 1, color: str = '#ffffff')

Controls the spacing between adjacent slices of the donut.

Attributes:

thickness (float) – the thickness of the gap between slices, in pt units, default: 1.
color (str) – the fill color of the gap area, default: white.

Example:

gap = GapConfig(
    thickness=0.5,
    color="#000000"
)

LabelConfig

class pptx_shapes.charts.donut.config.LabelConfig(size: int = 20, color: str = '#222222', family: str = 'Calibri', bold: bool = True)

Defines the style of the central text label that displays the total sum value inside the donut chart.

Attributes:

size` (`int`) – font size of the central label, default: ``20.
color (str) – text color, default: "#222222".
family (str) – font family used for the central label, default: "Calibri".
bold (bool) – whether the central label is rendered in bold, default: True.

Example:

label = LabelConfig(
    size=24,
    color="#333",
    family="Arial",
    bold=False
)

DonutChartConfig

class pptx_shapes.charts.donut.config.DonutChartConfig(inner_radius: float = 3, outer_radius: float = 5, start_angle: float = 90, gap: Optional[pptx_shapes.charts.donut.config.GapConfig] = <factory>, label: Optional[pptx_shapes.charts.donut.config.LabelConfig] = <factory>)

Main configuration object for the donut chart. Includes geometric settings and optional gap/label configuration.

Attributes:

inner_radius (float) – radius of the inner hole of the donut in centimeters, default: 3.
outer_radius (float) – radius of the outer circle of the donut, default: 5.
start_angle (float) – starting angle for the first slice (in degrees, clockwise from 3 o’clock), default: 90.
gap (Optional[GapConfig]) – configuration for slice spacing, default: instance of GapConfig.
label (Optional[LabelConfig]) – configuration for the central total sum label, default: instance of LabelConfig.

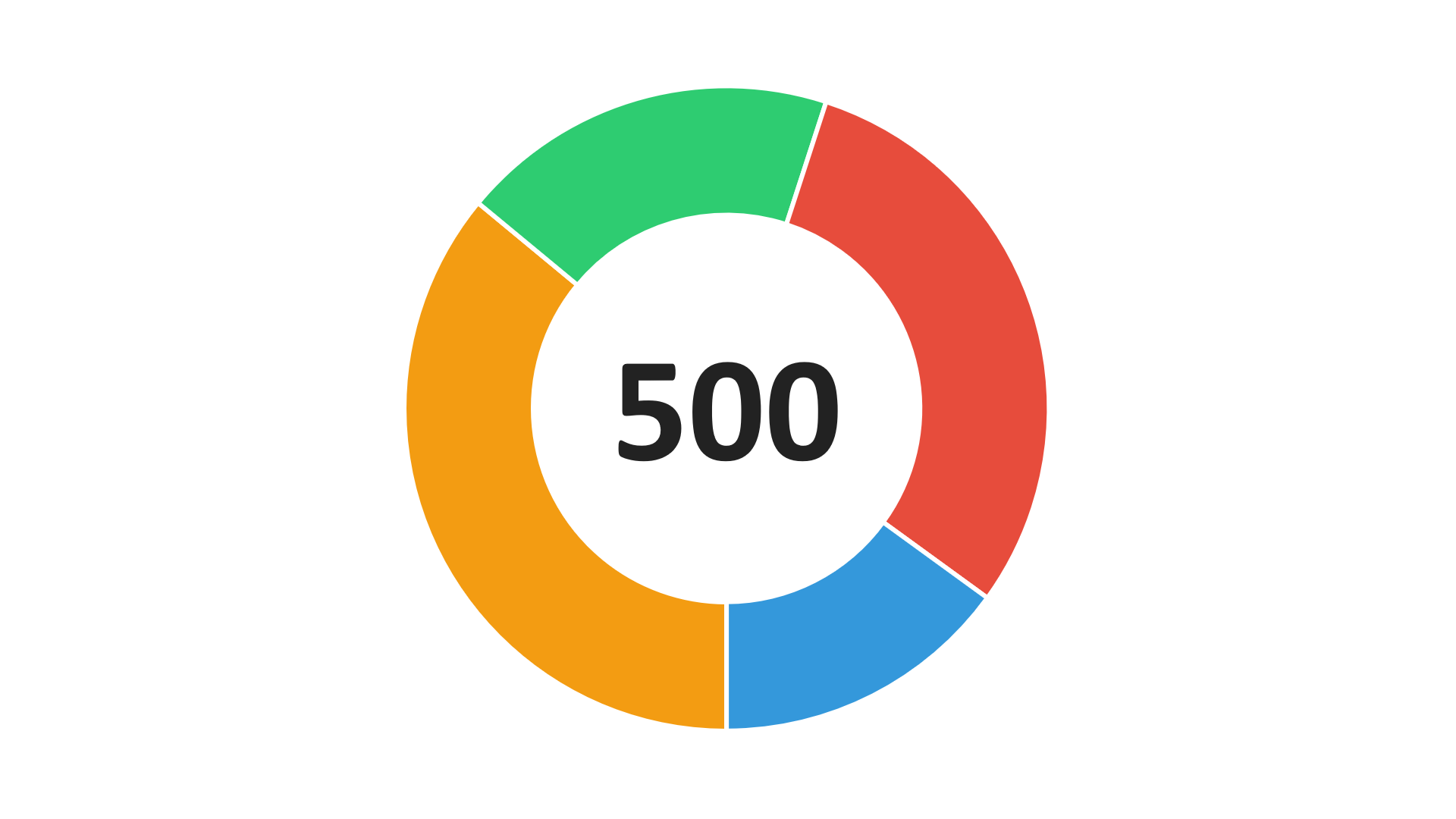

Example usage

from pptx_shapes import Presentation
from pptx_shapes.charts.donut import DonutChart, DonutChartConfig, GapConfig, LabelConfig
from pptx_shapes.shapes import Group

config = DonutChartConfig(
    inner_radius=4.5,
    outer_radius=7.5,
    gap=GapConfig(thickness=3, color="#fff"),
    label=LabelConfig(size=100, color="#222")
)

data = [
    {"value": 180, "color": "#f39c12"},
    {"value": 95, "color": "#2ecc71"},
    {"value": 150, "color": "#e74c3c"},
    {"value": 75, "color": "#3498db"}
]

with Presentation(presentation_path="empty.pptx") as presentation:
    chart = DonutChart(config=config)
    presentation.add(shape=Group(chart.render(data=data, x=9.4, y=2)))
    presentation.save("donut_chart.pptx")
